MODULO
MODULO
41l/min - maximum drainage capacity
70mm - minimum installation depth
1 - grate finishes
40mm - maximum tile thickness
Product Information

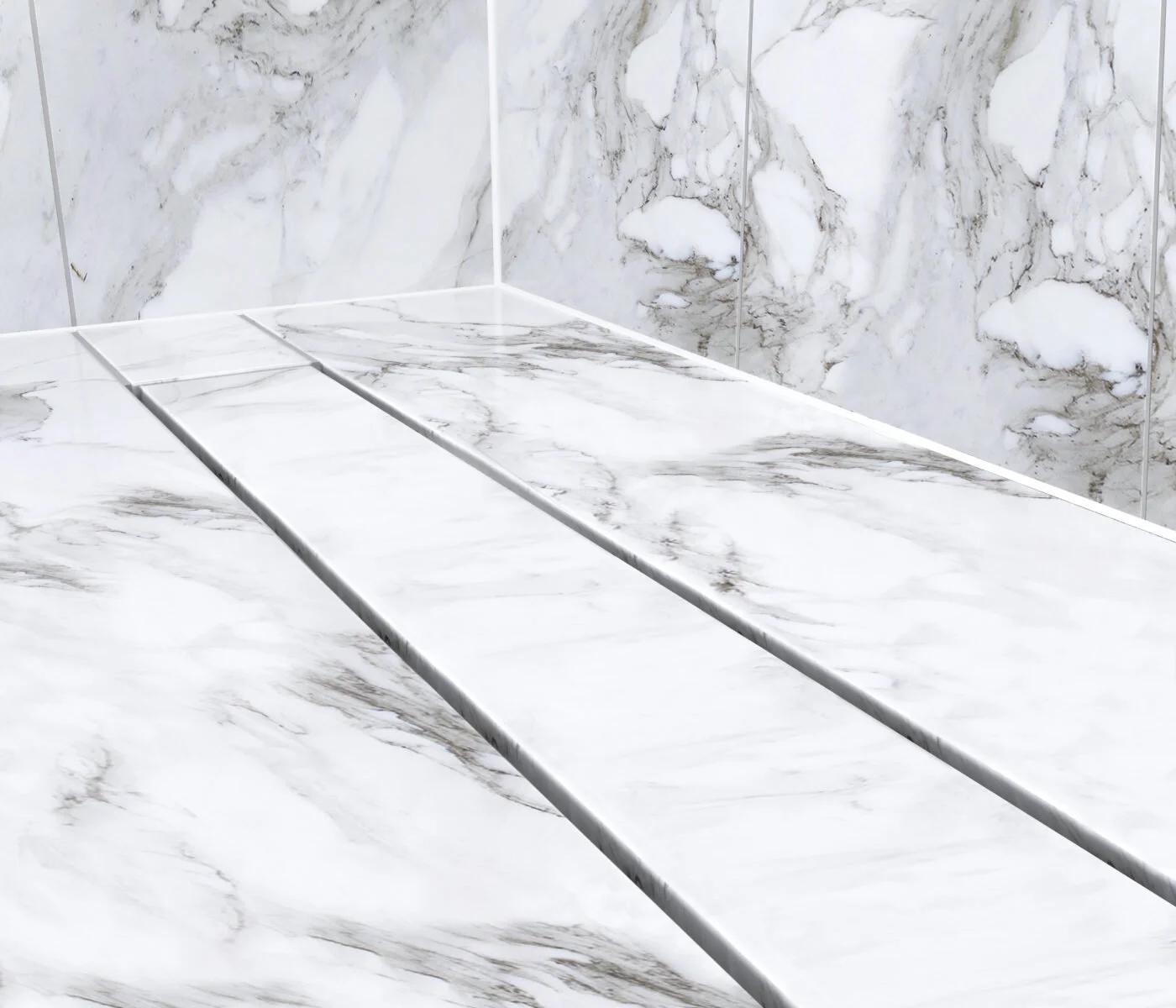

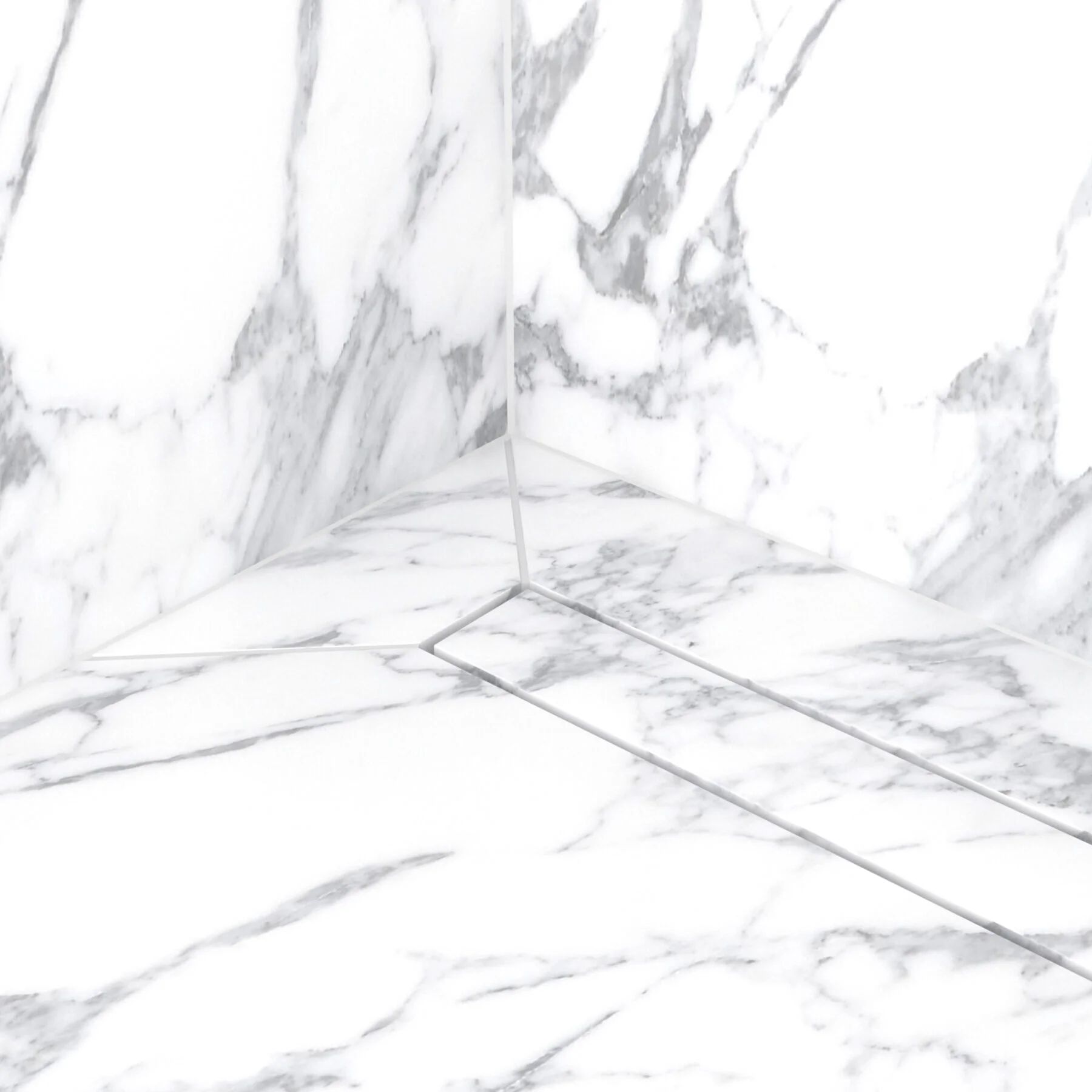

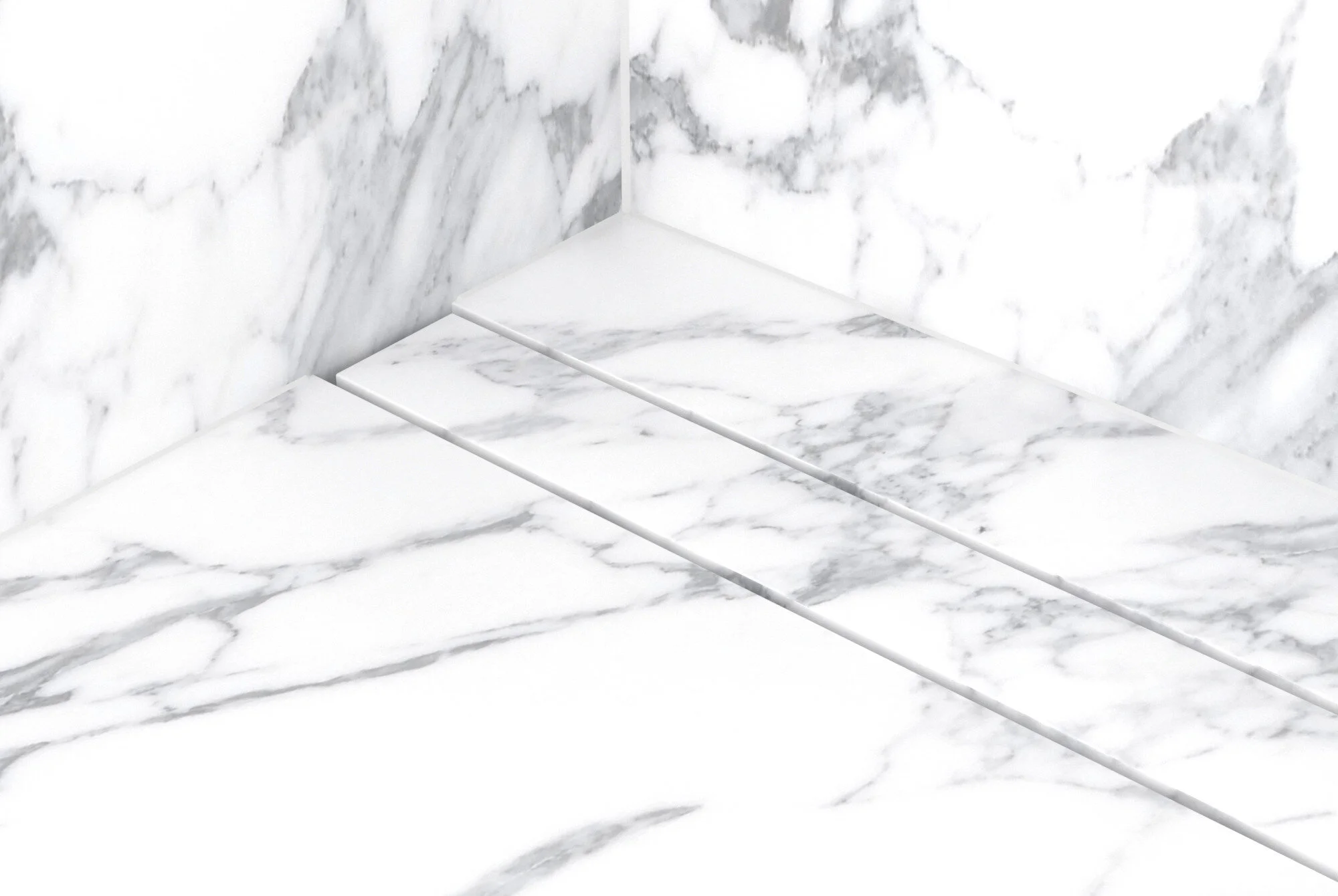

Easy Drain Modulo stone is a unique frameless shower drain with tileable grate that is developed for natural stone floors of any thickness. The frameless design makes it completely invisible and fits harmoniously into any bathroom floor
- 100% waterproof - 10 year warranty - 500 - 1200 mm lenght

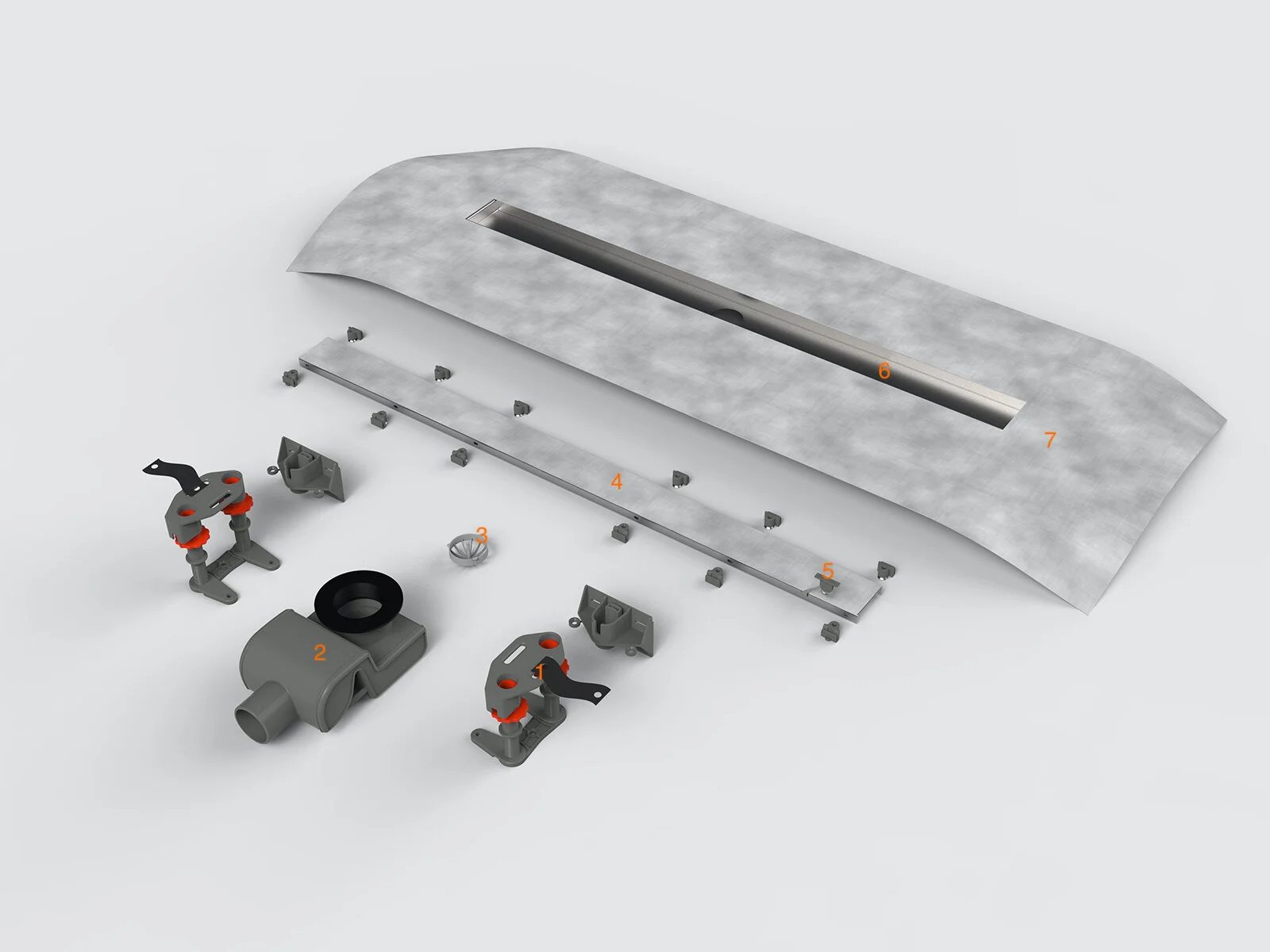

1
Height adjustable feet for adjustment, levelling and fixing the built-in set during installation
2
Siphon with 50 mm water seal (EN1253) and 360 degrees rotatable outlet
3
Easy removable and cleanable hair catcher
4
Tileable grate for using your natural stone floor as cover
5

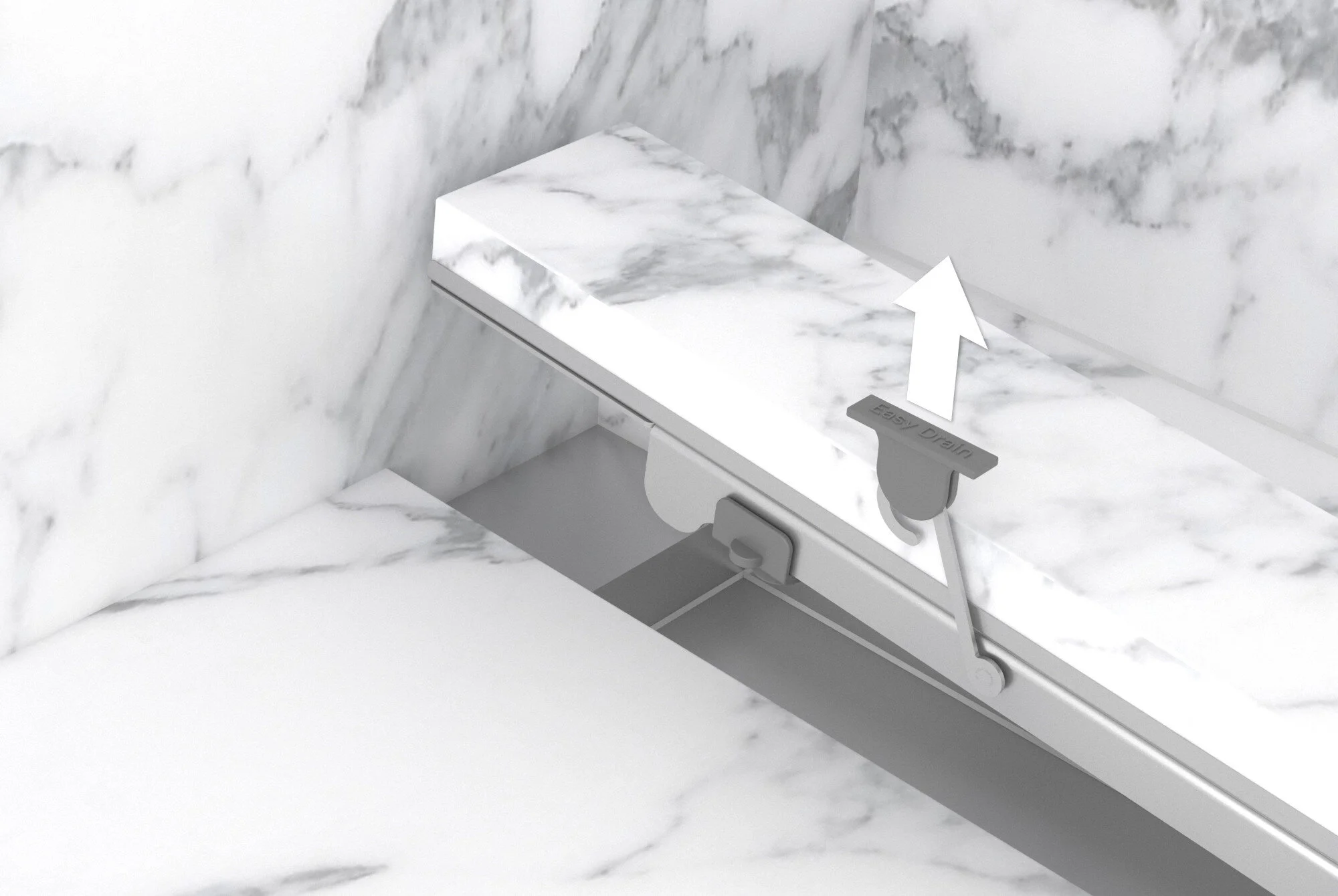

Easily remove the grate for cleaning and maintenance with the included logo lift tool
6
Built-in set is made of high-quality stainless steel with an integrated sloping
7
Water Protection System (WPS); a factory pre-assembled sealing membrane that offers 10 years warranty
Technical Information
Modulo Stone is a frameless linear shower drain that is suitable for any thickness of a natural stone flooring. It comes as a standard model or wall-to-wall, which can be shortened. The high drainage capacity makes this drain a real winner in any type of bathroom project.
+ Advantages of a walk-in shower
A walk-in shower, barrier free shower or step in shower is growing in popularity and are more frequently used in modern bathroom design. These popular types of shower floors are mostly installed in combination with a linear shower drain, which offers several benefits like easy cleaning, use of large format tiles and a one way slope towards the drain.
+ Benefits
- Appearance – Linear drains have a sleek and slim appearance, a subtle eye-catcher that fits in a large variety of shower floors.
- Maintenance – Linear drains offer easy maintenance and efficient water drainage.
- Flexibility – Linear drains can be placed almost anywhere in your barrier-free bathroom. Giving you the flexibility to create the perfect bathroom layout.
+ Future-proof bathroom for generations
Compared to traditional shower trays and drains, linear drains are far safer as they remove obstacles. A barrier-free walk-in shower is at the same level as the bathroom floor. This creates a creates a wheelchair- and senior friendly bathroom that can be enjoyed for many generations.
+ Create more space
You easily create more space in the bathroom by removing all thresholds and let your bathroom floor tiles continue into the shower. Barrier-free showering starts with a linear shower drain.
+ Why choose a wetroom system?
- Suitable for any bathroom project – We offer a wide range of linear shower drains that are suitable for any type of bathroom and installation situation, whether it’s renovation or new build.
Lengths up to 2 meters – Linear shower drains are available in lengths from 200 mm up to 2000 mm and are equipped with our patented technologies.
Low maintenance and easy-to-clean – All our drains are made of high-quality stainless steel and therefore require little maintenance. Our drains are easy to clean thanks to the easy removable siphon and hair catcher.
10-year warranty – We believe in our high-quality shower drains. That’s why we offer you a 10-year warranty on all of our products.
+ Easy waterproofing
Whether it’s a renovation or new construction project, waterproofing is necessary for any type of bathroom or wet area. With our Easy Seal sets, we offer a guaranteed safe and 100% watertight waterproofing system, in combination with one of our Easy Drains. As a result, leaking of faulty installation due to unfavorable conditions is eliminated.
+ Easy installation
Shower drains are supplied as a complete set and have just a few parts which enables a quick and easy installation. By using our comprehensive installation manuals and videos, assembling is completed in a matter of seconds.
+ Delivery
An approximate lead time can be given upon enquiry.
Please contact our sales team for more information.
